CNC Plasma Table

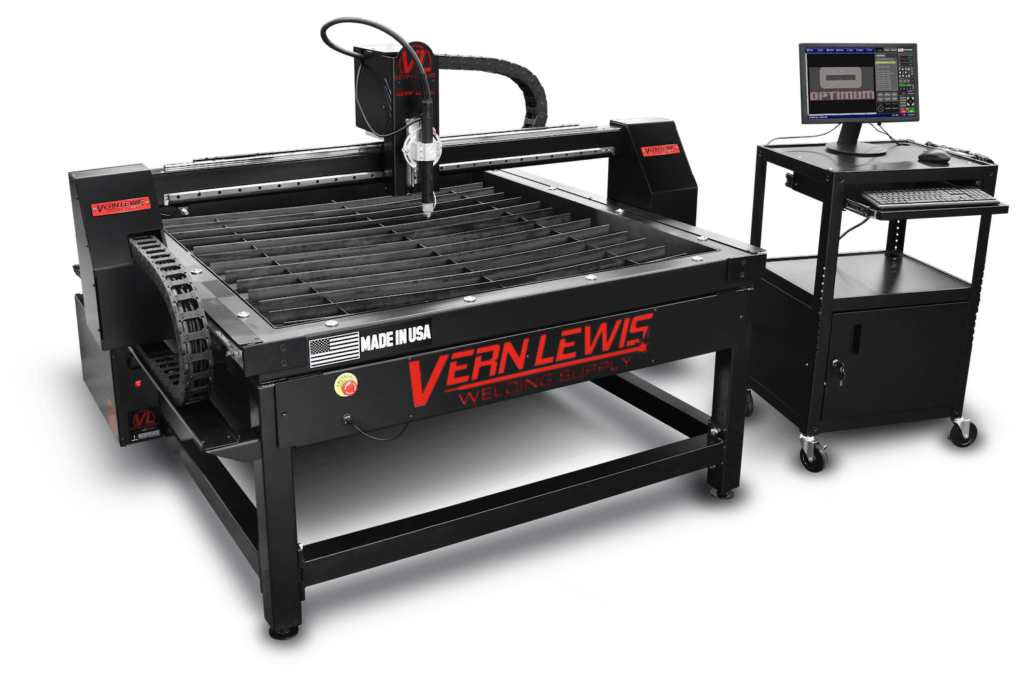

Vern Lewis CNC Plasma Table with control panel on a mobile cart.

Vern Lewis CNC plasma table

Series that Offers Faster and Cleaner Cuts with a Precise Motion System and a Sturdy, Heavy-Duty Build.

ADDITIONAL ACCESSORIES INCLUDED:

42″ PowerStation Mobile Cart w/ Locking Casters, Keyboard Tray, & 3-Outlet Power Strip

Display Monitor

Wireless Mouse

Wireless Keyboard

HDMI Cable for Monitor

Ask us about the separate adds-on available.

Five Standard Table Sizes Available

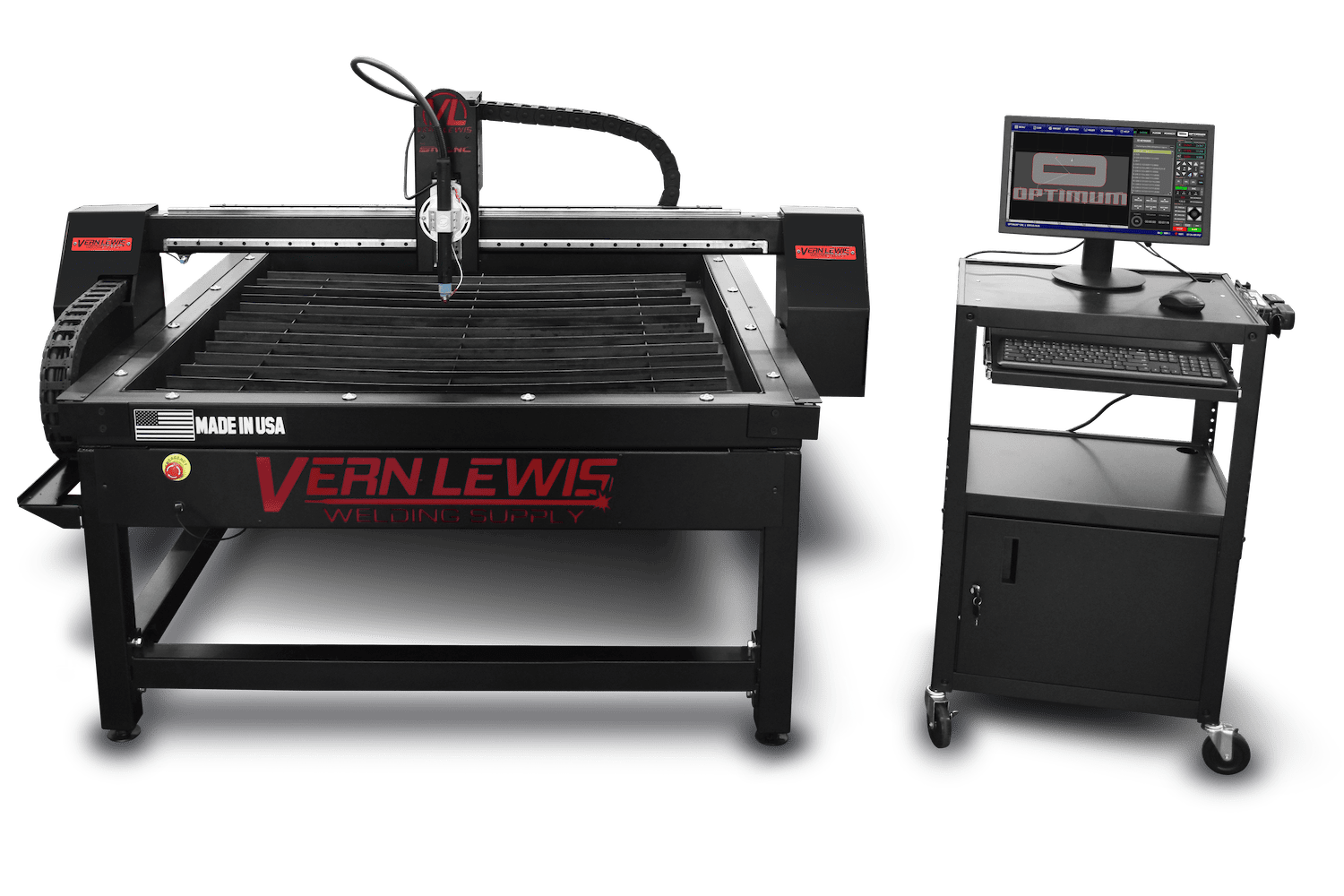

Vern Lewis CNC Plasma Table with control panel on a mobile cart.

4×4 Servo plasma table

SKU: VL4

Cutting Envelope: 4” (L) x 4” (W)

Table Footprint: 84“ (L) x 72” (W)

Table Area: 42 ft²

Dimensions: 7′ (L) x 6′ (W) x 5′ (H)

Weight: 1250 lbs

Vern Lewis CNC Plasma Table with control panel on a mobile cart.

5×5 Servo plasma table

SKU: VL5

Cutting Envelope: 5” (L) x 5” (W

Table Footprint: 96“ (L) x 84” (W)

Table Area: 56 ft²

Dimensions: 8′ (L) x 7′ (W) x 5′ (H)

Weight: 1350 lbs

Vern Lewis CNC Plasma Table with control panel on a mobile cart.
Vern Lewis CNC Plasma Table with control panel on a mobile cart.

4×8 Servo plasma table

SKU: VL8

Cutting Envelope: 8” (L) x 4” (W)

Table Footprint: 120” (L) x 72” (W)

Table Area: 60 ft²

Dimensions: 10′ (L) x 6′ (W) x 5′ (H)

Weight: 1450 lbs

5×10 Servo plasma table

SKU: VL10

Cutting Envelope: 10” (L) x 5” (W)

Table Footprint: 144“ (L) x 84” (W)

Table Area: 84 ft²

Dimensions: 12” (L) x 7” (W) x 5” (H)

Weight: 1750 lbs

6×12 Servo plasma table

SKU: VL12

Cutting Envelope: 12” (L) x 6” (W)

Table Footprint: 168“ (L) x 96” (W)

Table Area: 112 ft²

Dimensions: 14” (L) x 8” (W) x 5” (H)

Weight: 2100 lbs

Custom table sizes available upon request.

features and software

Vern Lewis CNC Plasma Table with attached cutting torch and black cable.

General

Power Source: 110VAC for Plasma Table; 220-600VAC for Plasma Cutting System

Power Supplies Available: Hyperthem Powermax45 Sync, Powermax65 Sync, Powermax85 Sync, Powermax105 Sync, and Powermax125.

Available Remote Pendant

Frame

4″ Top Tube Frame; 3″ Modular Tube Frame Plasma Table

Frame Holds up to 2” Steel Plate

Bolted Lower Leg Brace Supports for Rigidity

HEAD

Z-Axis Machined Head, Housing & Face Cover

Knuckle Torch Holster

Precision Ground Billet Ball Lead Rail

GANTRY & ASSEMBLY

Machined Steel Metal Gantry with 6.75” Clearance

Left & Right Servo Motor Gantry Housings

Automatic Homing Kit (4 Proximity Sensors)

MOTORS & TRACK

Precision 5:1 Ratio Planetary Gear Reduction

Servo Motor System

Backed by our VLWS Tech Team, the All-New CNC Control System Unites Industrialists Worldwide.

Optimum CNC

MacLinux Os Mini PC (Includes Power Adapter, HDMI Connector Cable, & Mounting Plate)

CAD/CAM: Import G-code, DXF Files, & Generate G-Code

Library of 80+ Editable Shape Templates

Integrated Hypertherm® Cut Charts + Ability to Set Custom Settings

Accepts Filetypes: dxf, gode, nc, dnc, iso, tap, txt, NC, CNC

Import G-Code Filetypes: TAP, TXT, NC, DIC, ISO, CNC

SheetCam Post Processor Included

System Log (Commands & Faults)

MDI (Manual Data Input Mode; On-Screen Keyboard)

System Diagnostics for Inputs/Output

CONTROL BOX/CONTROLLER

Optimum CNC Controller & Control Box

Magnetic Vent Cover

110VAC Power Cable

6” Controller Ethernet Cable

Book a Demo By Appointment

Demos are available by appointment only at our Peoria welding lab. Please contact our Product Training Specialist, Josef Vidales, to schedule yours.

(480) 320-0891

[email protected]

Black and white "Made in USA" label with American flag.

The Vern Lewis CNC by STV®CNC Plasma Table is Manufactured in Las Vegas, NV for Vern Lewis Welding Supply.

Book a Demo By Appointment

Demos are available by appointment only at our Peoria welding lab. Please contact our Product Training Specialist, Josef Vidales, to schedule yours.

(480) 320-0891

[email protected]

The Vern Lewis CNC by STV®CNC Plasma Table is Manufactured in Las Vegas, NV for Vern Lewis Welding Supply.
